No barriers to a safer roof with Kee Guard safety guardrail

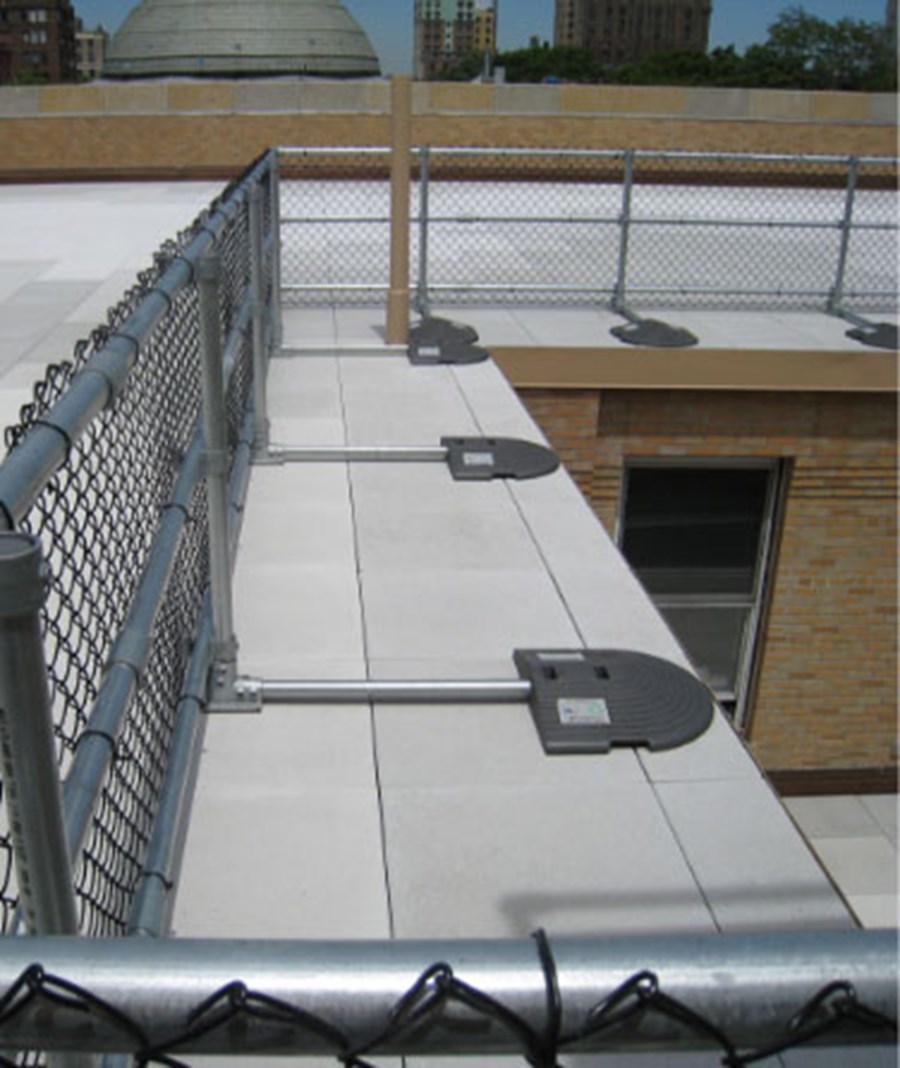

Kee Guard is the industry leading modular, free-standing safety railing system that is not fixed directly to the roof membrane. It’s an OSHA compliant, permanent, and dependable safety guardrail barrier for a roof edge that is suitable for virtually any flat roof up to a 5° slope – keeping your workforce safe. Kee Guard is the safety rail standard recognized for superior rooftop fall protection by companies all over the world. Kee Safety has a wide variety of rooftop guardrail solutions.
Why do you need Kee Guard Safety Guardrail?
Highly versatile rooftop fall protection

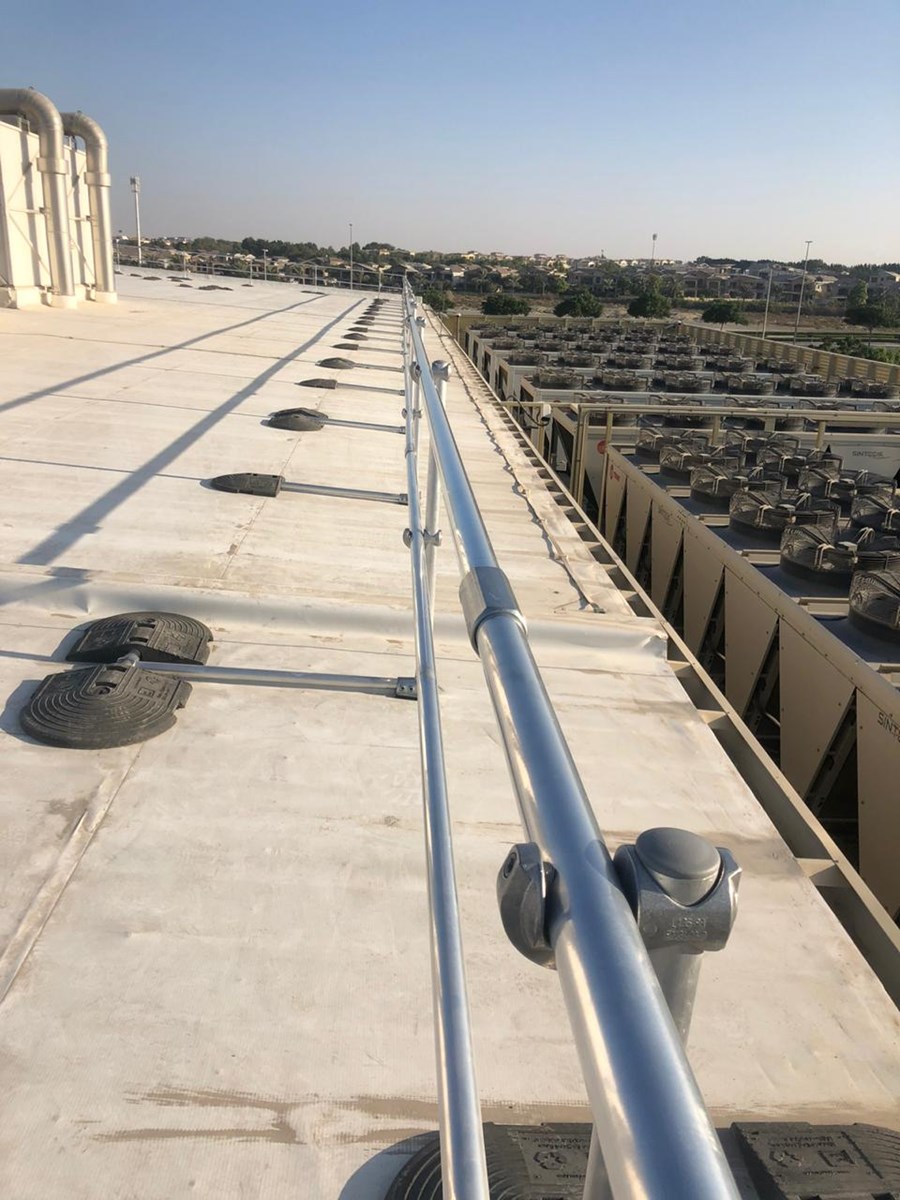

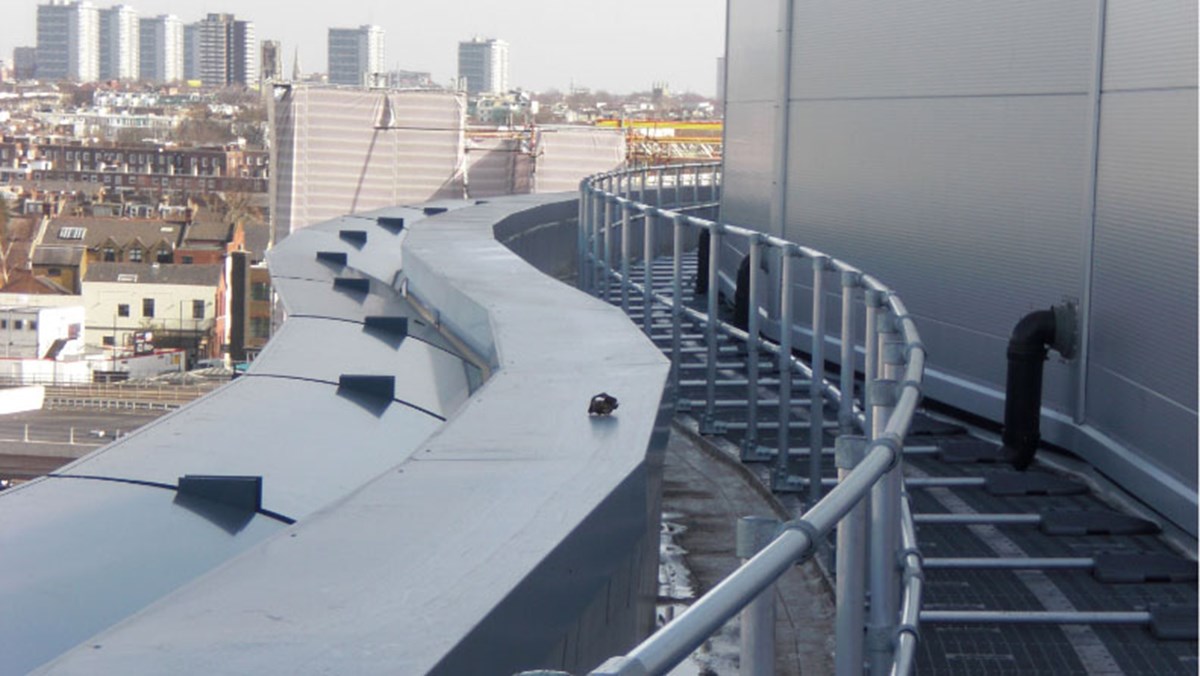

Offers the best stability for all standard rooftop fall protection systems including membrane, metal profile, and standing seam roofs. It’s also very flexible and can be used on everything from complex roof shapes to those that change in elevation. Rooftop guardrail protection from Kee Guard separates your people from hazards.
Easy to install

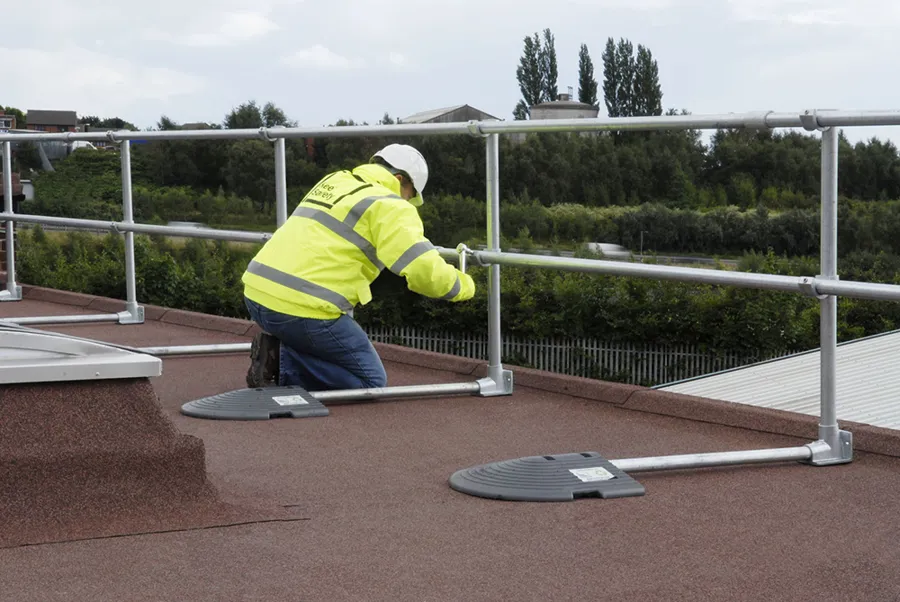

To assemble Kee Guard, you will need a torque wrench or hex key, making it incredibly easy to install. Once in place, it is a safe, versatile system that delivers reliable leading edge rooftop fall protection.
Longevity is the Standard
The hot-dipped, galvanized finish is corrosion-resistant and requires little-to-no maintenance for safe, dependable, and trouble-free rooftop guardrail edge protection. Kee Guard safety railing offers long-term rooftop fall protection solutions.

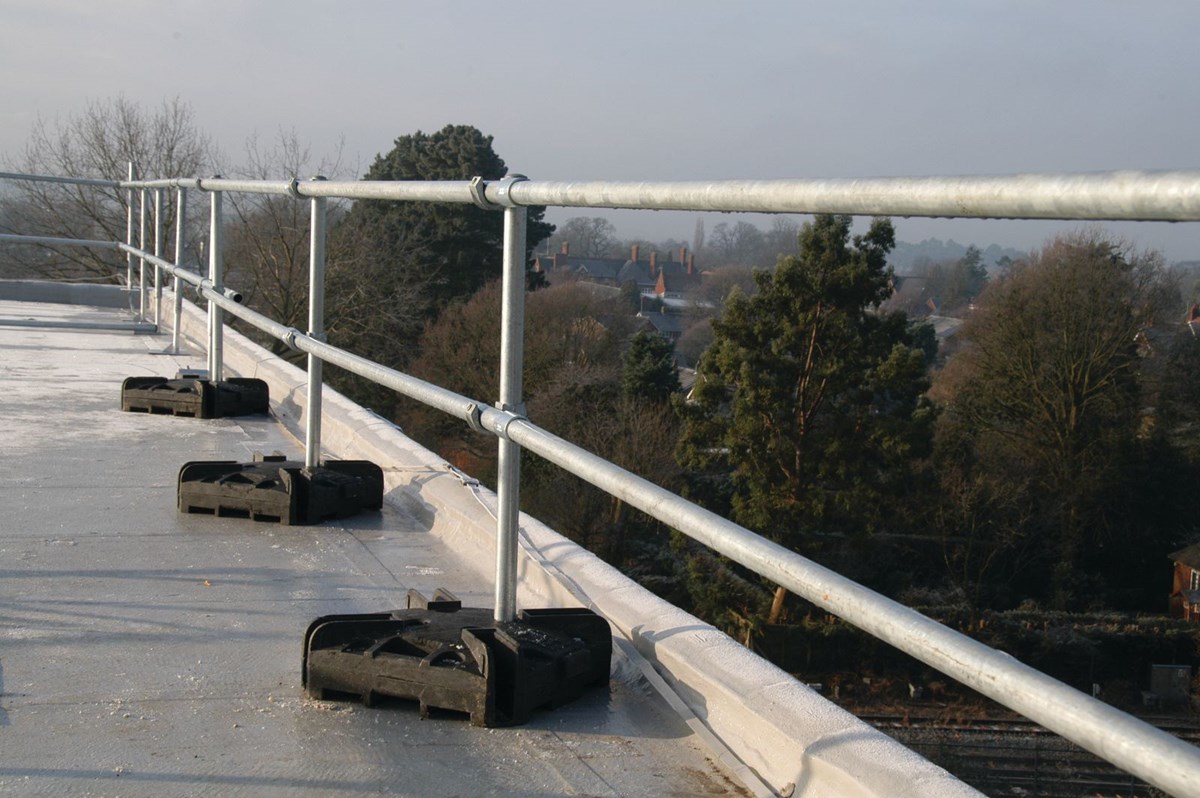

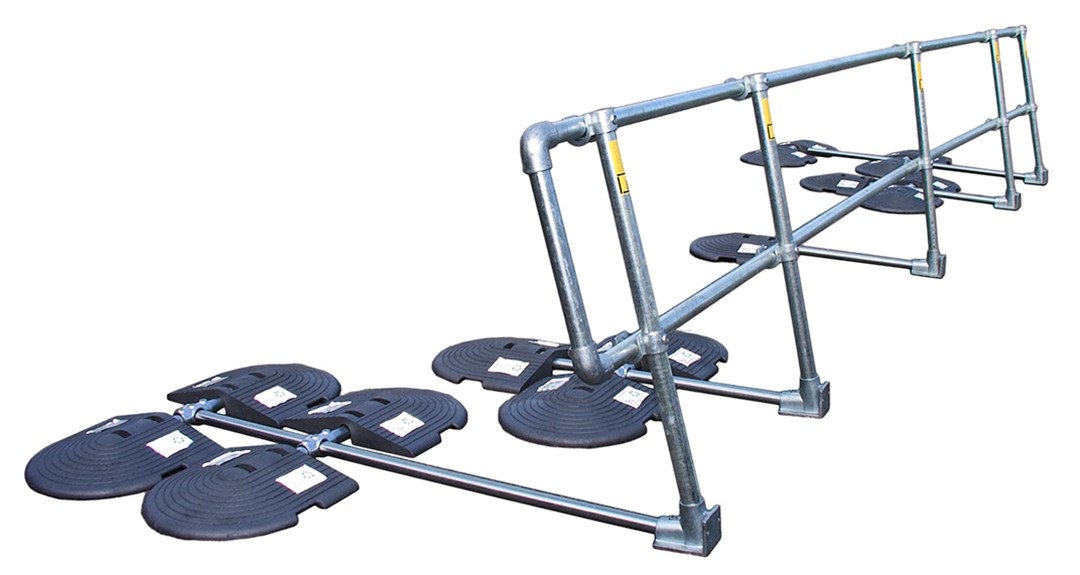

Kee Guard is built using counter-weight engineering. Its simple cantilever design provides superior strength and safety in even the harshest of environments. In addition, the heavy-duty bases are manufactured using eco-conscious, recycled PVC.
A Comprehensive Range

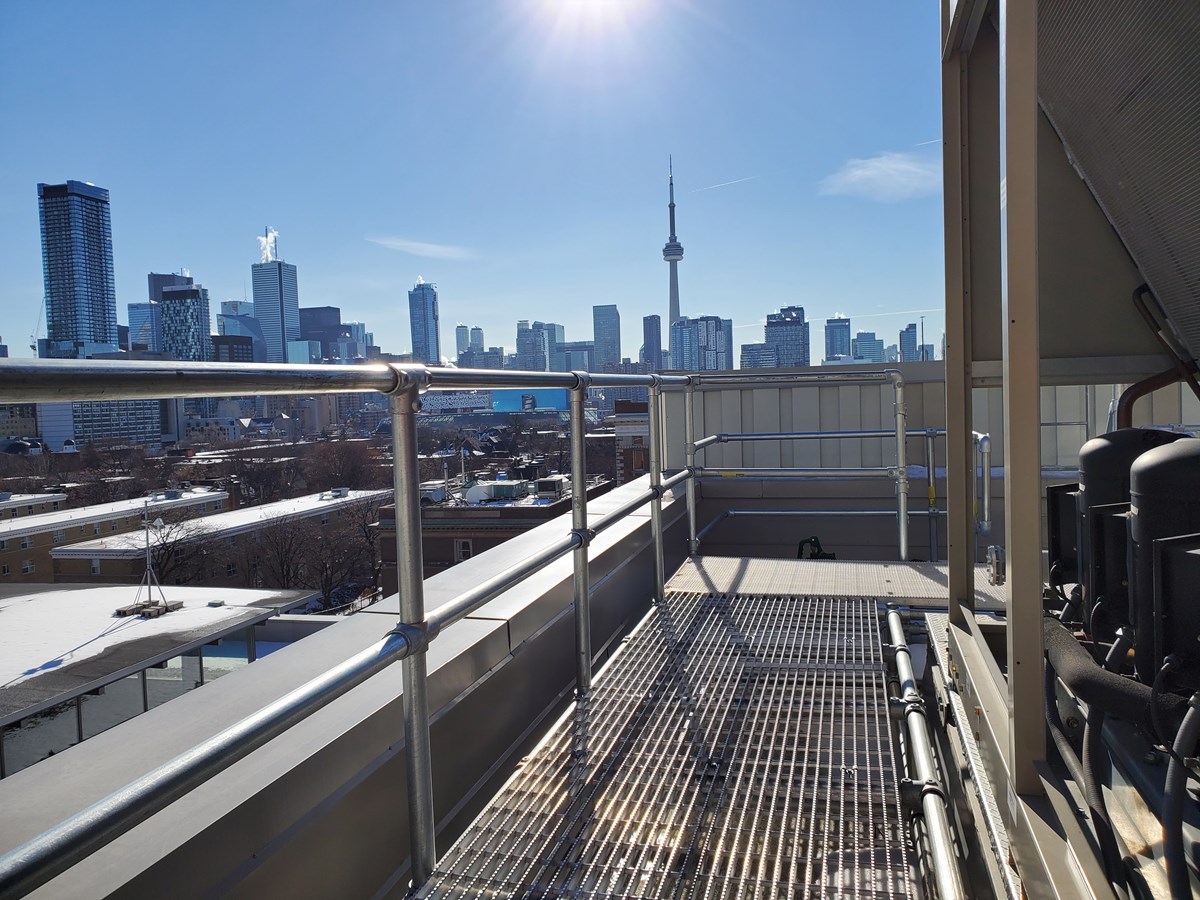

The system is available for different roof types, either for use where a restraining wall such as a parapet is in place or where the rooftop is completely open around the perimeter. The Kee Guard® rooftop guardrail system can be used for retrofitting older buildings as well as for new constructions.
Kee Guard provides passive fall protection without penetrating the roofing material.
Exceeds OSHA Standard 1910.29(b)(3) and 1926.502(b)(3) for fall protection guardrail.
Exceeds 200 lbs/ft requirements
Tested beyond the minimum weight standards to give you and your workforce peace of mind.
Suitable For Many Roof Types

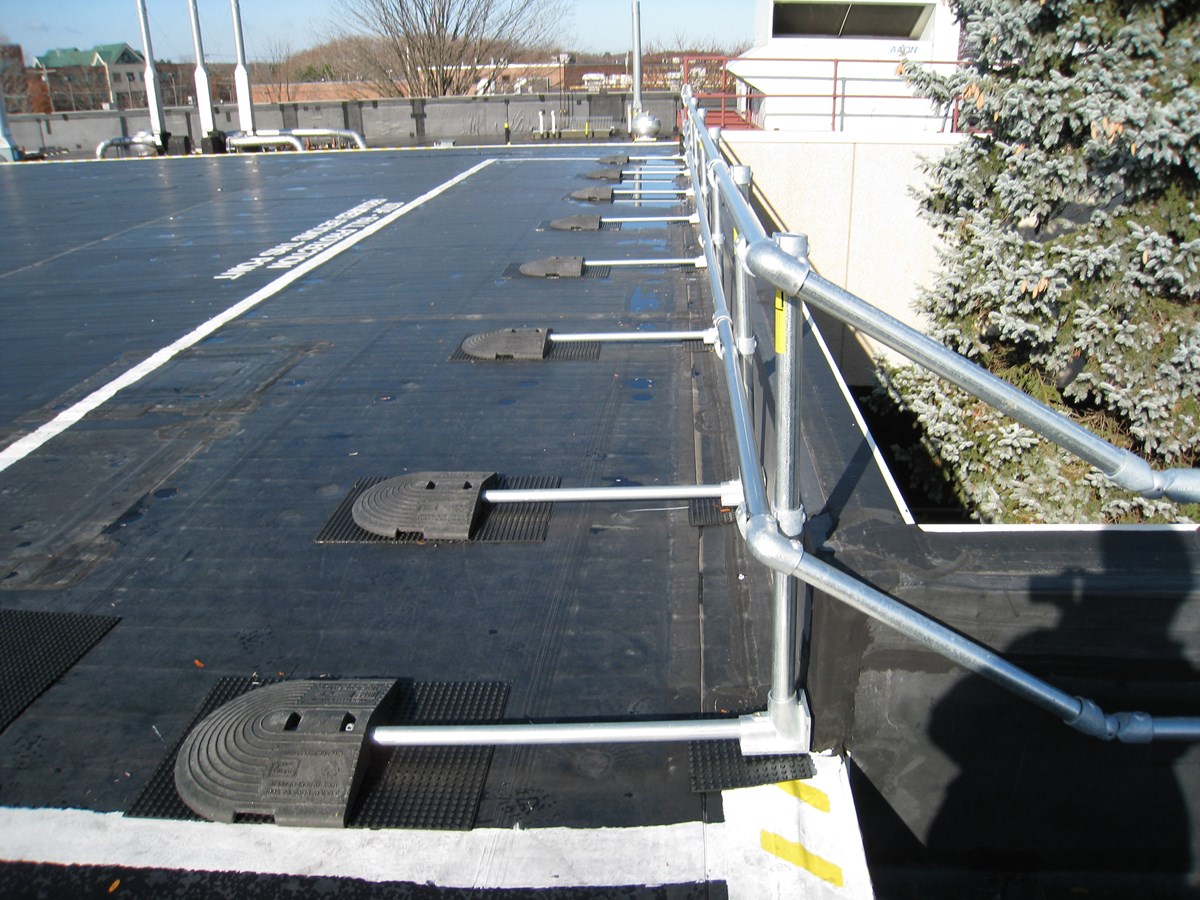

Can be fitted to concrete, asphalt, PVC, membrane and felt roof surfaces up to 5 degrees without penetrating.
If your fall protection needs modification on-site (before or after installation), the system can easily be reconfigured.
All fittings are galvanized to EN ISO 1461 and equipped with case hardened steel setscrews. The horizontal rails are galvanized inside and out, and outlast standard galvanized pipes 4:1 in salt spray tests.
Multiple Color Options
Available in a full range of powder-coated RAL colors to suit your building aesthetics.
Kee Guard's versatile design makes it a snap to negotiate around unforeseen rooftop obstacles.

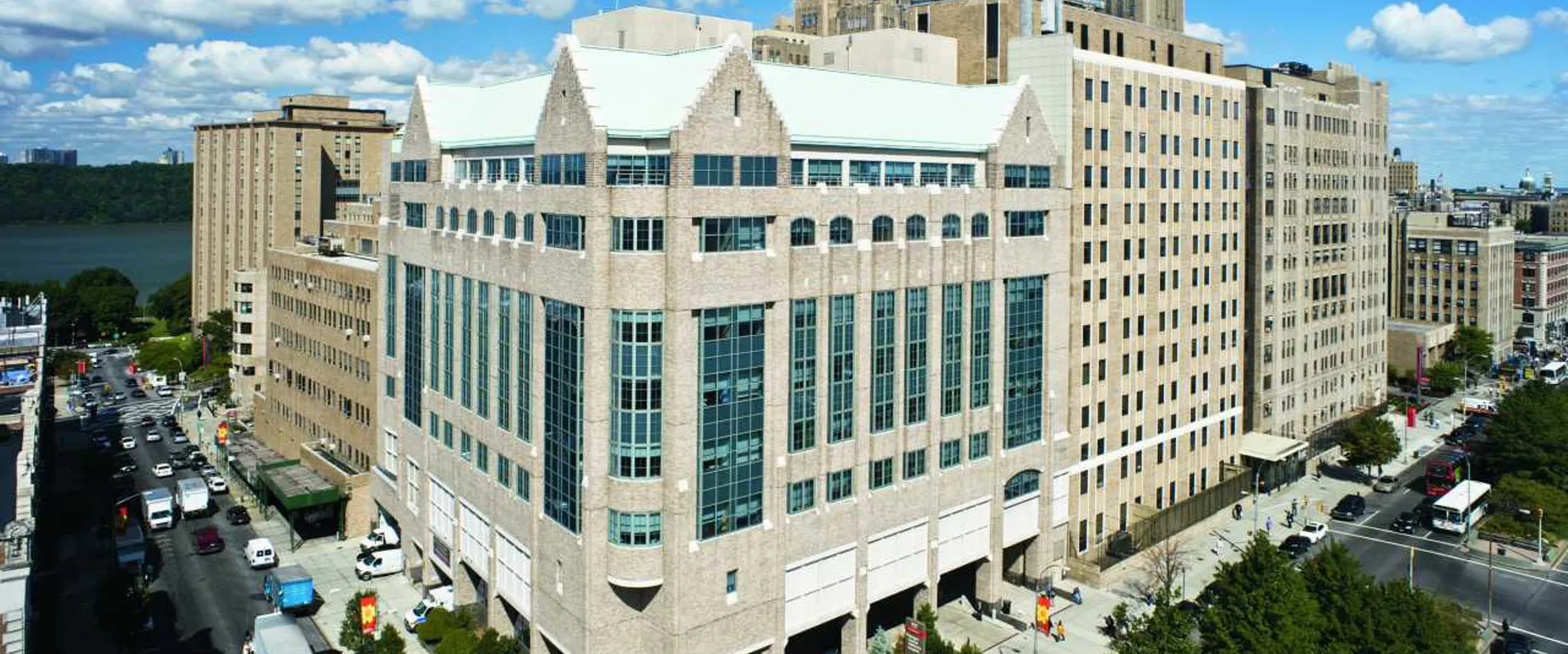

Kee Safety was able to help overcome all the obstacles of working at a busy hospital, providing a great rooftop guardrail solution that will keep our roof warranty intact.
Ryan Molitor, Project Manager
Highest standards for off-the-ground safety guardrail solutions
OSHA 29 CFR 1910.29 (b)(1)-(b)(15)
OSHA 29 CFR 1926.502 (b)(1)-(b)(14)
EN ISO 14122 Part 3
EN 13374 Class A
BS 13700 : 2021
HSG-33 Health & Safety in Roof Work
HSE INDG 284 “Working on roofs”
BS 6399: Part 2 1995 Wind Code
AS 1657 : 2018
Wind loading in accordance with AS/NZS 1170.2
Certified at our advanced testing facility
Kee Safety runs one of the world’s leading test and training centers at its global headquarters. Run by a team of industry experts, this state-of-the-art facility ensures Kee Safety meets the needs of its customers, provides them with fully compliant fall protection systems, and drives new innovation with the purpose of separating people from hazards.
Building owners and employers are responsible for protecting their workers from any hazard encountered while on the job. In jobs requiring access to roofs for maintenance purposes, fall protection is usually required if workers will be exposed to a fall hazard.
Will installation of Kee Guard reduce insurance premiums?
Insurance premiums are often impacted by steps taken by the building owner to reduce hazards to their workers. More importantly, building owners’ liability will be strictly examined if an industrial accident occurs and preventative measures (such as Kee Guard) were not taken.
KeeGuard components can be painted by the customer before or after installation. KeeGuard components are also available powder coated in any RAL color at the customer’s request (extra charges apply for powder coating). Powder coating takes place prior to shipment.
Yes. KeeGuard Roof Edge Fall Protection Railing System is a passive, collective fall protection system that is preferred by safety consultants. Lives have been lost in work-related falls resulting from workers not using harnesses properly. The KeeGuard system removes the potential of that risk. Harness systems require training and proper and regular use. The embedded anchor for a harness system could later leak and cause costly water damage. The worry of not having enough harnesses for rooftop workers is eliminated.
With the use of the new Kee Guard open style fitting (standard), two workers with minimal experience and simple hand tools can be installed up to twice as fast as most other systems. All materials should be delivered to the rooftop using a hoist, crane or other mechanical methods. No power tools are required.
Galvanized pipe is used for vertical, horizontal and counterbalance supports and Kee Klamp fittings are all galvanized at our factory. The grub screws used to assemble the fittings and pipes together are all protected by Kee Koat® which is a special corrosion-resistant coating. Kee Guard fall protection system is engineered using special fittings and is designed to withstand a full range of outdoor conditions.
The system employs a tested and proven counterbalance system, the KeeGuard system (Patents in effect) is a roof edge railing fall protection system that keeps the workers on the roof without endangering the roof membrane itself.

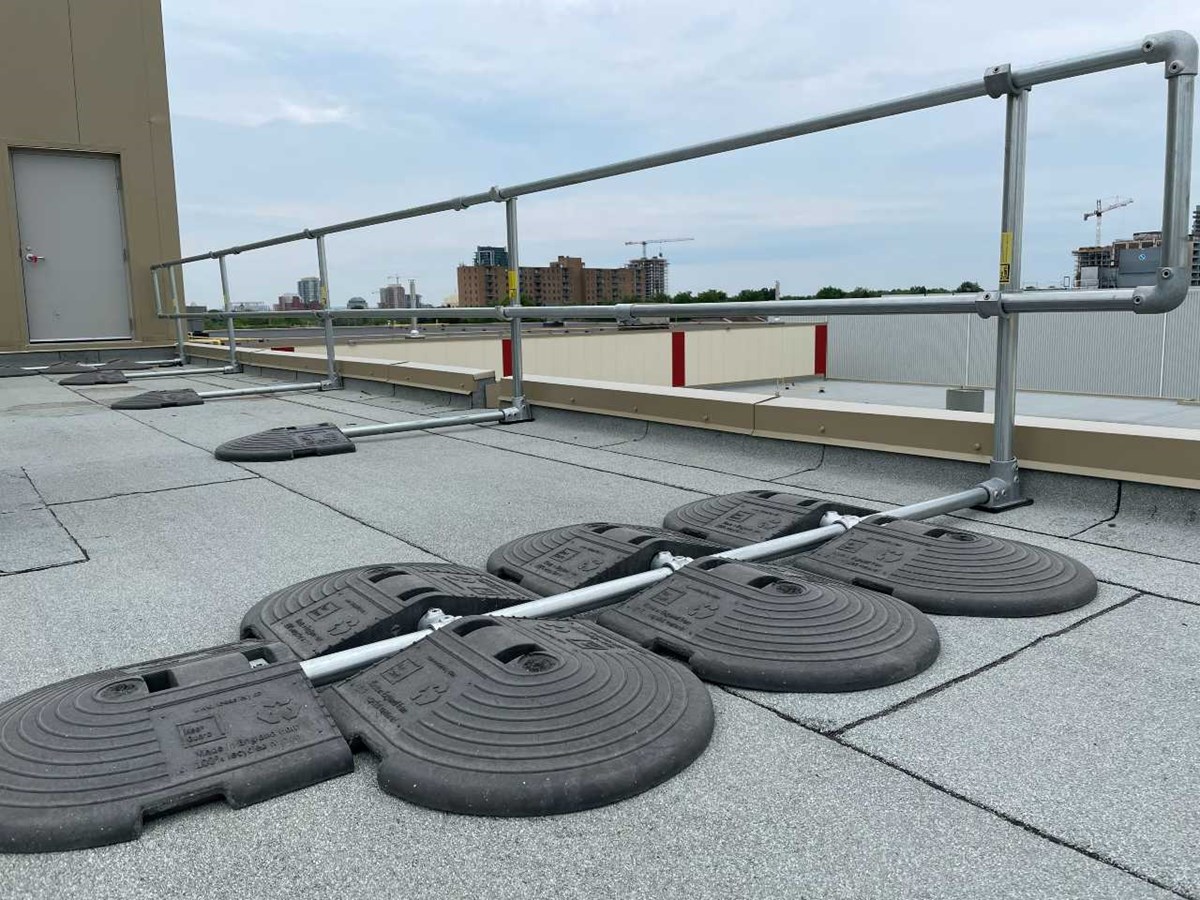

Each Kee Guard counterbalance weighs only 30 pounds and has an insulating rubber pad on the underside which is installed at the factory. Each counterbalance is spaced sufficiently to make the entire system deliver less weight per square foot than the average worker who might have to walk on the roof.
Design and Installation
We offer full design and installation services that include a complete on-site survey. Also, we can produce comprehensive shop drawings to help you visualize the end result. With our detailed project outline, you can be confident that your project is professionally specified, and that all safety concerns and standards are addressed to your satisfaction.
Alternatively, you can specify and install Kee Guard yourself with our easy-to-follow instructions – it all starts with a call to our knowledgeable staff!
