Railings grounded in safety

In 1934, we invented Kee Klamp® tubular fittings for use in the agriculture industry. Following the development of these simple safety barrier systems, many other uses were found.

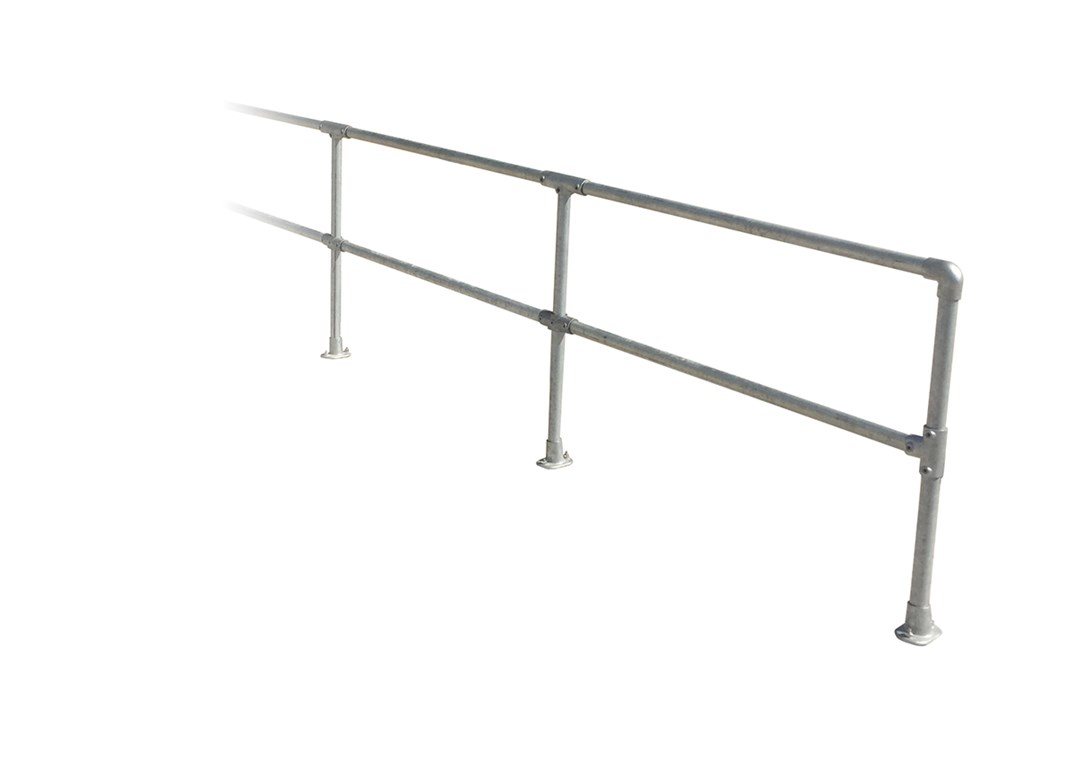

KS KKL 5563 RT

Kee Klamp® Creates Superior Safety Railing

Enhanced Durability

Our steel fittings are hot-dipped galvanized so every connection remains solid and lasts for decades. All fittings go through a rigorous quality control processes that includes detailed inspections through the manufacturing process. The result is incredible longevity and strength.

Simple to Adapt

Kee Klamp® is modular so it can be easily configured and installed precisely to your needs. Railings come in a variety of galvanized steel or aluminum finishes. The guardrail accommodates toeboards, in-fill panels, or safety gates, while exceeding OSHA compliance.

Easy to Install and Repair

There are no special tools or labor needed to install Kee Klamp® railings. All components are secured with just a hex set-screw. Because of its modular design, the railing can easily be modified by simply cutting it to size. It’s also easy to repair a damaged section by simply removing and replacing it.

Key Features

OSHA compliant

The Kee Klamp system exceeds OSHA regulations and compliance, so you can rest assured your safety railing ticks all the relevant codes.

Custom designed

With its highly versatile and flexible modular design, our railing can be configured to the exact specifications of your site.

Strong components

Kee Klamp guardrail is galvanized inside and out with a proprietary coating to guarantee corrosion resistance, even in the toughest environments.

Install quickly

The slip-on components come together easily and are firmly locked in place with hexagon set screws. It means you don’t require any specialized labor or tools.

Video Overview of Kee Klamp

Kee Klamp Components Fittings

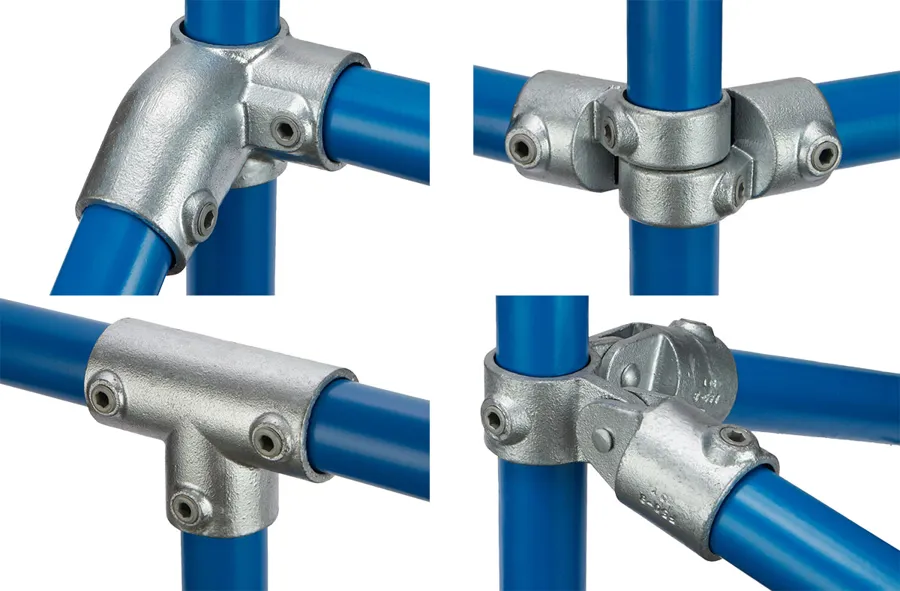

The Kee Klamp Component

The engineering principle behind the Kee Klamp® fitting is the foundation of the most versatile tube connection system available. There are many variations of tubular fittings to suit a wide range of applications, providing the versatility to achieve any structural configuration.

Kee Klamp Fittings
KS KKL 2695 Medium

Keeping people safe since 1934

Kee Klamp was Kee Safety's very first product invented by George H. Gascoigne and his colleagues to create a safety barrier in cow milking stalls. Since then the company has produced over 100 million fittings, many of which are still in use to day. A testament to the longevity of his design.

BG (1)

Connect with our support team

Highest standards for on the ground safety

  • Conforms to the regulatory requirements of Building Regs. Part M for DDA compliance
  • manufactured in accordance with BS EN 1562
  • Made of galvanized cast iron to BS EN ISO 1461
  • Kee Klamp pipe fittings are galvanized to BS 729 (ISO 1461) and ASTM A153 which can last for over 30 years.
  • BS EN 10255 (ISO 65) steel tubes
  • Components are TÜV certified for strength, manufacturing quality and consistency.
  • Robust quality inspection procedure conforming to ISO 9001

Trusted Fall Protection for Recognized Brands

  • Intel
  • Loreal
  • Selfridges
  • Ikea Logo
  • Arcelormittal Logo

Frequently Asked Questions

    • How Strong are Kee Klamp Fittings?
      A Kee Klamp® fitting (size 5 to 9) can support an axial load of *2000 lbs (900 kg). per grub screw with the grub screw tightened to a torque of 29 lbs.
    • How do I keep the fittings from being tampered with?
      Grub screw inserts are available to deter tampering with a finished Kee Klamp Structure.
    • How do I install Kee Klamp?
      The basics of installing Kee Klamp Structures is simple – an hex key is all that is needed to tighten the set-screw and lock the fitting in place. From there any structure or railing system can be build, which is why we commonly refer to them as “tinker toys for adults.” For product-specific installation instructions please view the resource section of that product page.
    • How long will Kee Klamp Last outdoors?

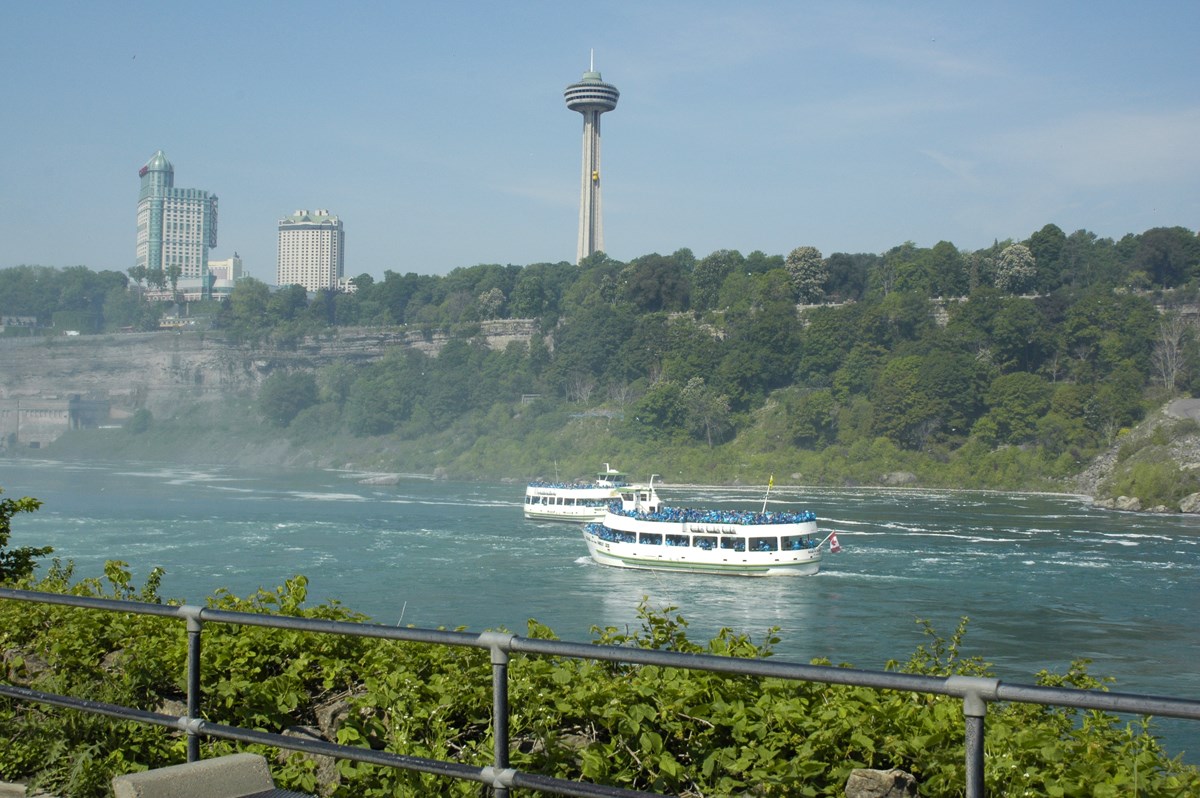

      Our galvanized fittings are designed to last 30+ years in outdoor environments. Some 60+ year old fittings can still be spotted in State and National Parks across the US, including Niagara Falls and the Adirondack region of New York.
    • What happens if I damage a Kee Klamp Structure?
      Simple, simply untighten the set screw of the affected area and replace with a new fitting. No cutting, welding, or threading required!

Kee Klamp downloads

BG (1)

Talk to a Kee Klamp specialist

`

Projects Featuring Kee Klamp Railing

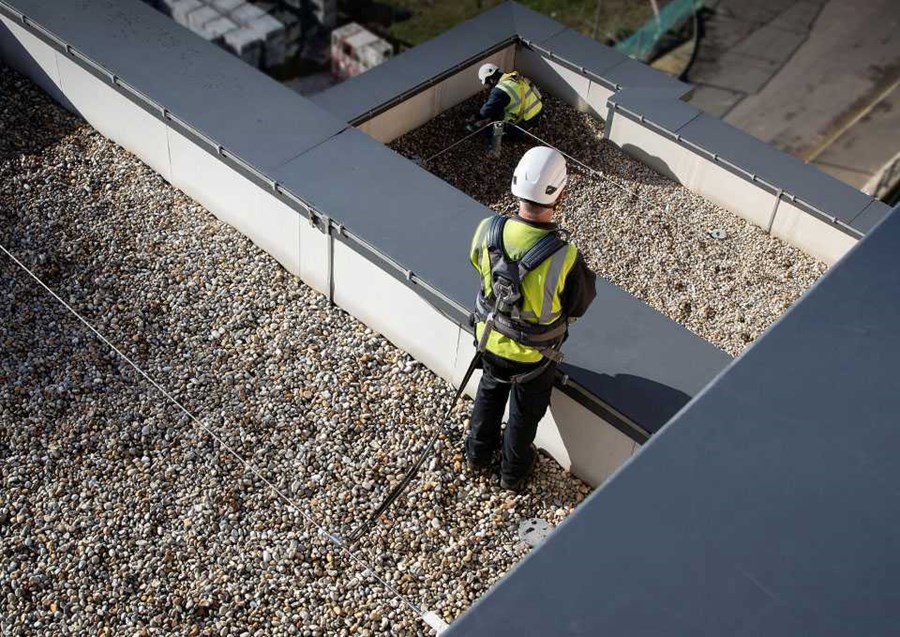

    KeeLine Horizontal Lifeline

    Design and Installation

    We offer full design and installation services that include a complete on-site survey. We also produce comprehensive shop drawings to help you visualize the end result. With our detailed project outline, you can be confident that your project is professionally specified, and that all safety concerns and standards are addressed to your satisfaction.

    Alternatively, you can spec and install Kee Klamp yourself with our easy-to-follow instructions – it all starts with a call to our knowledgeable staff!
