If your team goes onto the roof to service equipment, inspect solar panels or clean gutters, fall protection needs to be part of the plan. For California facilities, choosing a guardrail starts with understanding which Cal/OSHA requirements apply to that work.
Kee Guard® is a non-penetrating rooftop guardrail system that uses counterweights to provide stability without drilling through the roof membrane. It can be configured for Cal/OSHA applications, with rail height, post spacing and counterweights specified for the installation.
We help you work through those details—from the roof surface and layout to the areas your maintenance team needs to reach. Below, we explain the relevant California guardrail requirements and what to consider when specifying Kee Guard for your building.
Before choosing a rooftop guardrail, establish which California safety requirements apply to the work. Routine maintenance, construction and suspended building-maintenance operations can fall under different safety orders.
For general-industry applications, Title 8, Section 3209 sets out the specifications for standard guardrails. These include:
Height: The top rail must be within the specified 42–45-inch range above the working surface. The section also states a one-inch dimensional tolerance.
Midrail: A midrail must sit approximately halfway between the top rail and the working surface, or equivalent protection must be provided.
Strength: The railing, including its connections and anchorage, must be designed for a live load of 20 pounds per linear foot applied horizontally or vertically downward at the top rail.
Post spacing: The standard metal-pipe specification limits spacing to eight feet. Other combinations are permitted where equivalent strength and protection are maintained.
Toeboards: Where required, toeboards must meet the applicable dimensions and construction requirements.
These are requirements for the complete railing system. A rail at the correct height still needs the right layout, connections and support.
The following sections are useful starting points when reviewing a California guardrail project:
Section 3209 — Standard Guardrails
Covers general-industry guardrail design, including dimensions, strength and construction.
Section 3210 — Guardrails at Elevated Locations
Addresses where guardrails are required at elevated work locations and identifies specific exceptions and alternative protection.
Section 1620 — Design and Construction of Railings
Sets requirements for railings under California’s Construction Safety Orders.
Section 1621 — Railings and Toeboards
Addresses construction situations requiring railings and toeboards, subject to its scope and exceptions.
Section 3294 — Powered Platform Installations—Affected Parts of Buildings
Applies to buildings using powered platforms for maintenance and includes specialized roof-guarding requirements.
The work being performed matters as much as the building. Identify the applicable safety orders before selecting a system or comparing product specifications.

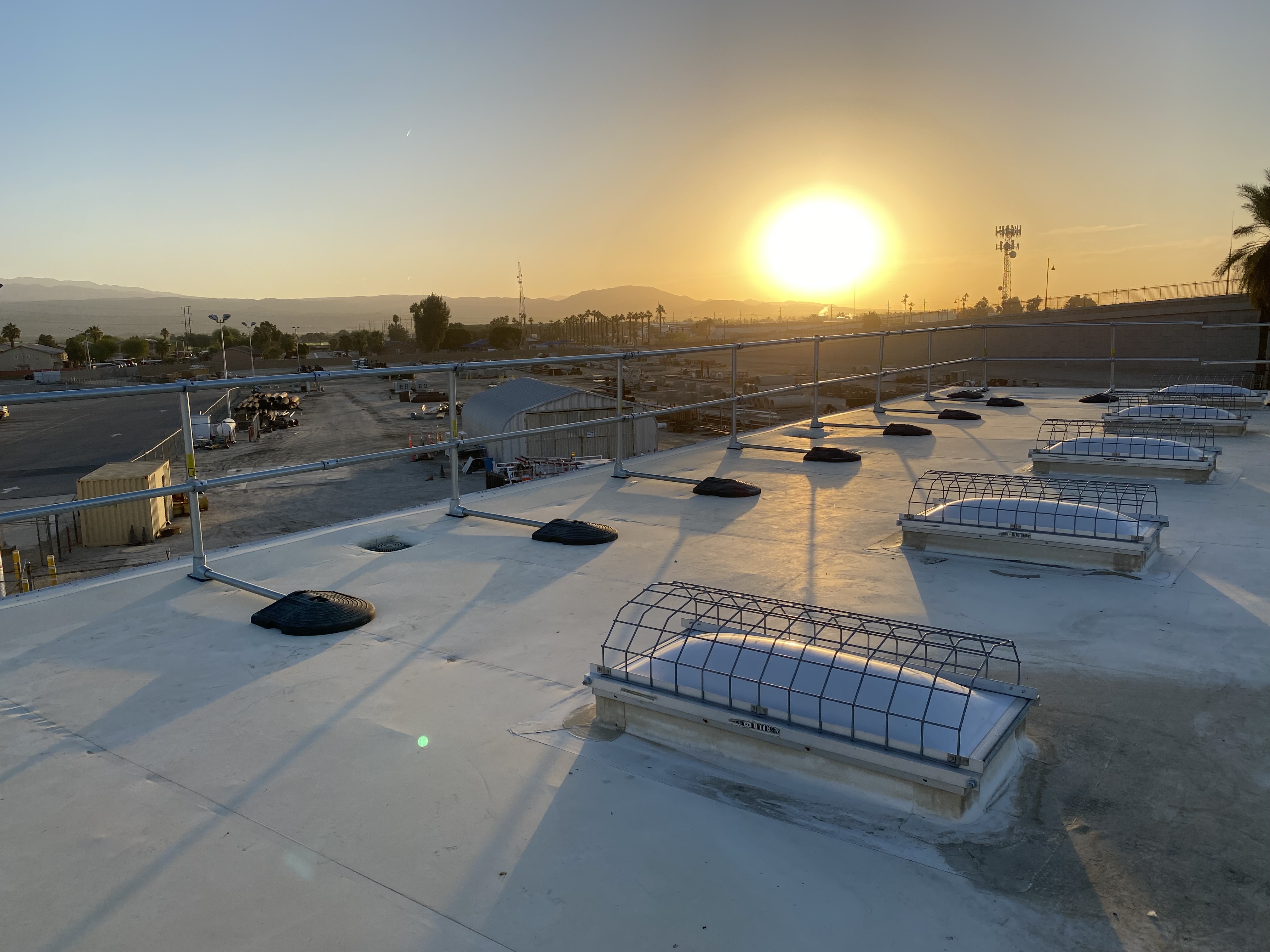

Installing fall protection does not always require drilling into the roof. Kee Guard® uses a freestanding, counterbalanced design to provide roof-edge protection without fastening through the roof membrane.
For a maintenance team, a guardrail provides a physical boundary along the protected area. Workers do not need to attach a harness to the railing to use that protection.
Kee Guard’s modular components allow the layout to follow corners and accommodate rooftop obstructions. Galvanized components provide corrosion resistance for outdoor use, while protective materials beneath roof-contact components help protect the membrane.
The proposed installation still needs to account for roof capacity, membrane compatibility, slope and wind exposure. Roof-warranty conditions should be checked with the roofing manufacturer.
The Kee Guard operation and maintenance manual includes a dedicated Cal/OSHA configuration with specified bay lengths and counterweights.
For the listed unrestrained mineral-grade-felt roof configuration at a maximum 5° pitch, the manual specifies a 3-foot-3-inch end bay and 6-foot-6-inch subsequent bays, together with the prescribed counterweight arrangement.
Those dimensions describe that particular configuration. They should not be used as a universal layout for every roof surface or Kee Guard system.
When planning your installation, our team reviews the roof layout, access points and areas where work takes place. The system specification should identify the rail height, bay spacing, counterweights and end details, along with the relevant wind and roof-loading considerations.
View the Kee Guard Operation & Maintenance Manual
The University of Southern California needed safer access to rooftop areas, including perimeter gutters that required maintenance. The customer also wanted a solution that avoided roof penetrations.
Kee Safety worked with the project team to provide a non-penetrating Kee Guard installation that addressed the site’s fall-protection needs and improved access for maintenance.
Yes, when the complete system is designed, configured and installed to meet the requirements for its application. Rail dimensions, strength and stability all need to be addressed. The absence of roof penetrations does not, by itself, establish compliance.
A federal OSHA compliance statement alone does not establish compliance with every applicable California requirement. Check the relevant California safety orders and the documentation for the proposed system configuration.
Occasional access does not automatically remove the need for protection. Section 3210 includes an exception for certain infrequently used elevated locations when employees use a qualifying fall restraint or fall arrest system. The right approach depends on the work and the applicable requirements.
That depends on the roof surface, slope, structural capacity, wind exposure and space available for the system. Roof photographs and drawings are a useful starting point for assessing suitability.
No. Kee Guard is not intended to serve as a fall-arrest anchor or tie-off point. Any personal fall-protection system needs an appropriate anchorage specified for that purpose.
Send the project location, roof photographs or drawings, approximate railing length and a description of the work your team performs. If you know the roof material, slope and building height, include those details too.
Planning a new guardrail installation or reviewing an existing roof? Kee Safety can help assess the areas your team needs to access and specify a Kee Guard layout for the application.
Contact our team to discuss your project and request a rooftop guardrail assessment.
