We offer rooftop hazard protection with KeeGuard Rooftop Guardrail
Our modular, free-standing safety guardrail system provides a permanent/temporary, safe and dependable barrier for the roof edge without penetrating the roof membrane. KeeGuard Contractor safety railing is versatile, easy to assemble, and gives you an innovative approach to durable portable safety railing systems for roofs up to a 5 degree pitch. In addition to these benefits, it’s OSHA compliant and third-party tested for rooftop guardrail reliability. Your best safety guardrail solution for fall protection that will not damage your roof.
On a flat or low slope roof, a protected perimeter limits access to the leading edge. Installing a modular, free-standing safety railing system that does not penetrate the roof membrane provides a permanent, safe and dependable safety guardrail barrier for the roof edge.

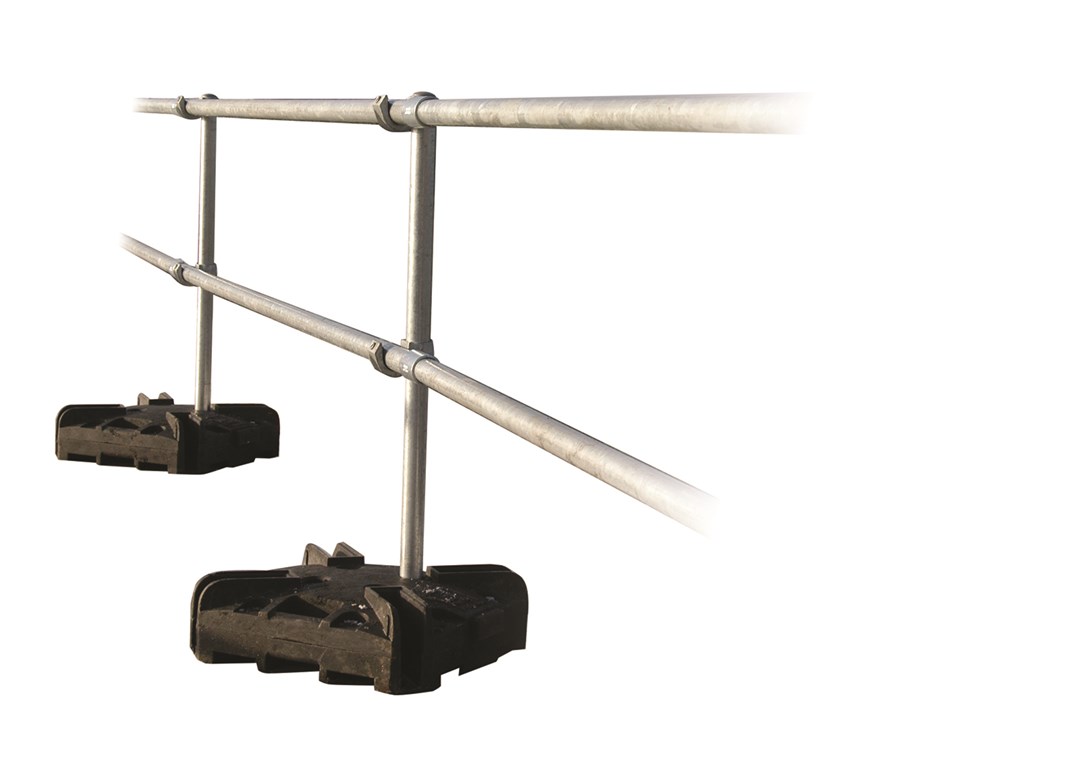

Unique Safety Guardrail Base Design
The unique base weights are designed for quick assembly and disassembly when a temporary safety railing fall solution is needed. It can also be used in conjunction with permanent KeeGuard Standard when space limitations are an issue. KeeGuard Contractor is the perfect rooftop guardrail for applications on roofs of up to 5 degree pitch.
Versatile and easy to install safety railing
There is no welding needed on-site, which means the safety guardrail can be installed with basic tools. Plus the components can be adapted to meet the unique design requirements of non-standard roof applications. Safety Railing solutions that are easy to install.
Key Features of KeeGuard Contractor
No roof penetrations
Suitable for use on concrete, asphalt, PVC, membrane and felt roof surfaces up 5 degrees. Rooftop Guardrail that will not damage your roof.
Exceeds OSHA Standard 1910.23(b)(3) and 1926.502(b)(3) for fall protection guardrail.
It can be easily reconfigured on-site so you have the flexibility to make last minute adjustments.
When toeboards need to be fitted KeeGuard Contractor can easily accommodate this.
All iron fittings are galvanized to EN ISO 1461 so the system will last for years without corrosion.
200lbs design load
Even if an operator were to fall heavily against the guardrail they would be protected.
No welding, threading, or bolting is needed so there’s no need for a hot works permit.
Coated to match
The system can be powdercoated to match the facade color or any other color.

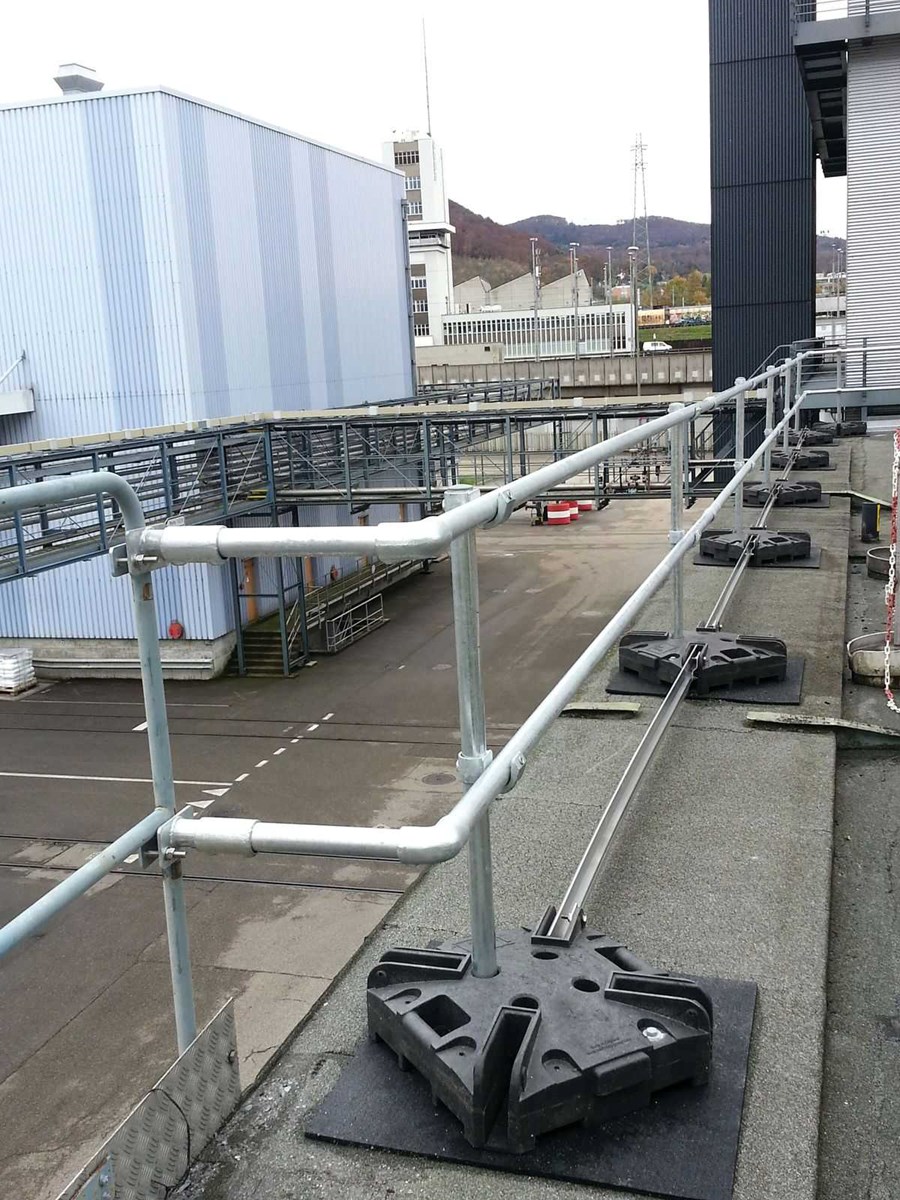

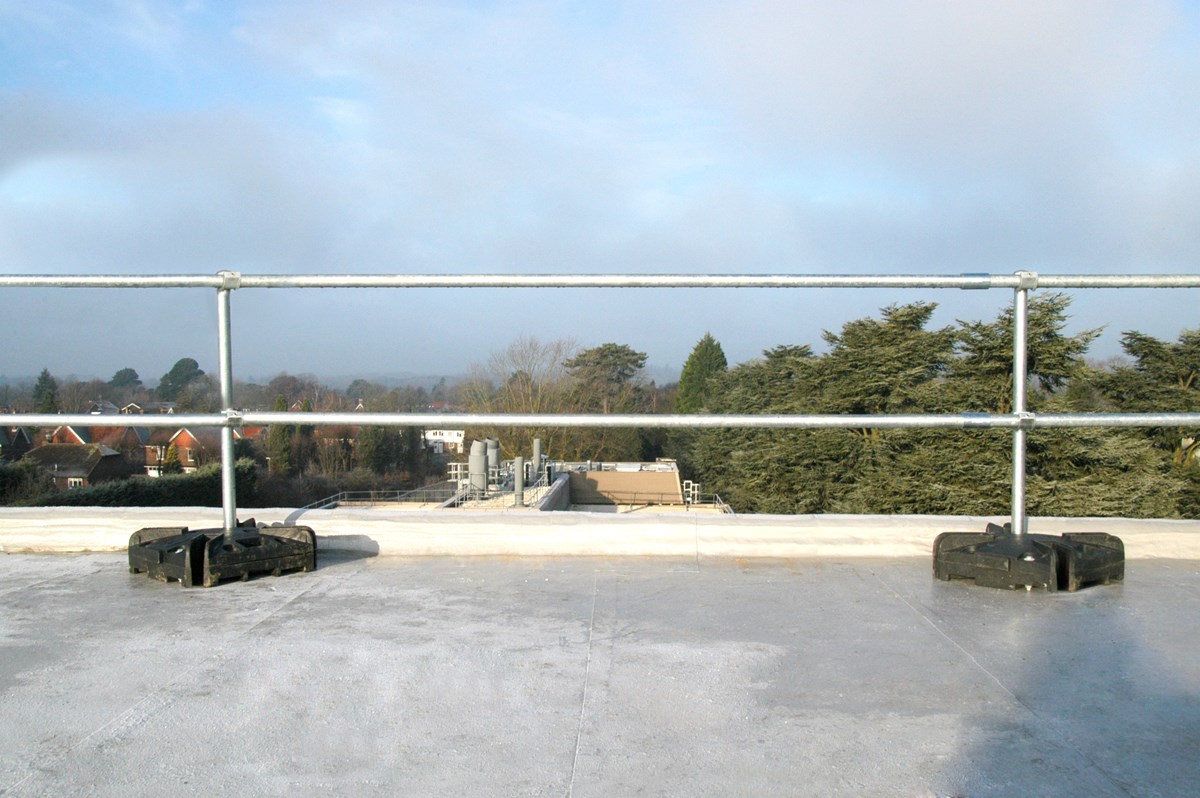

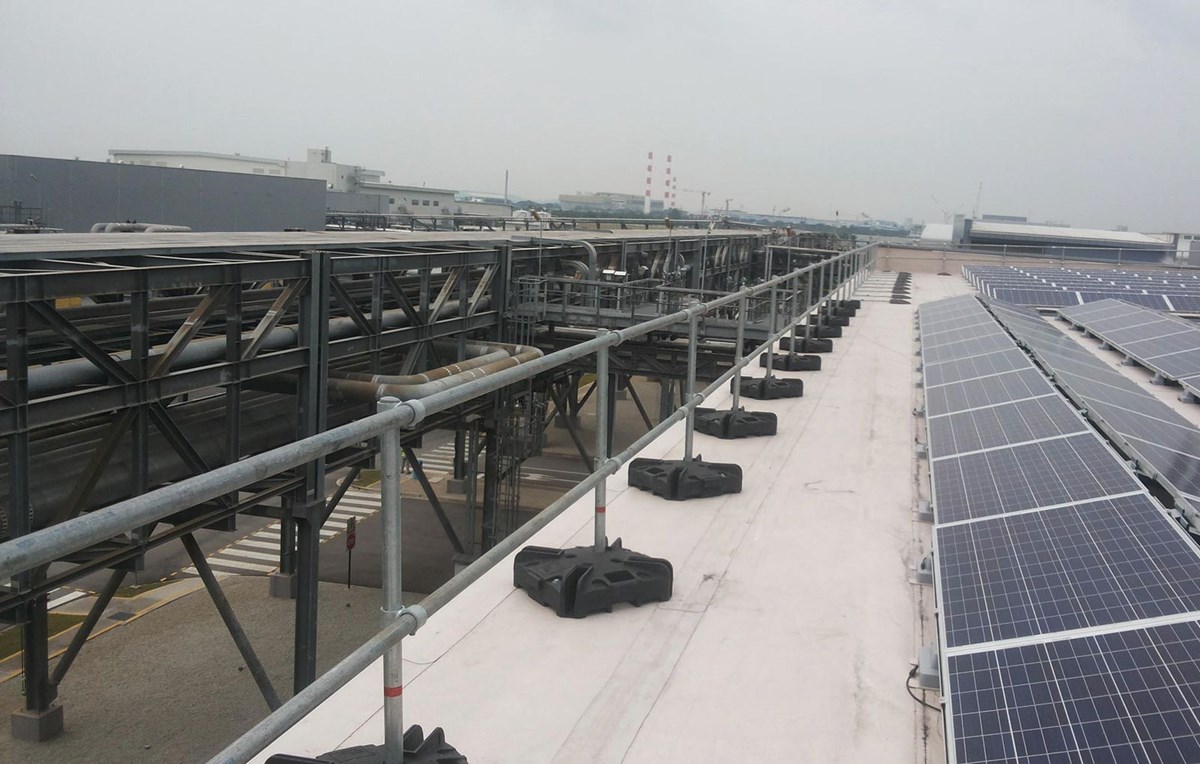

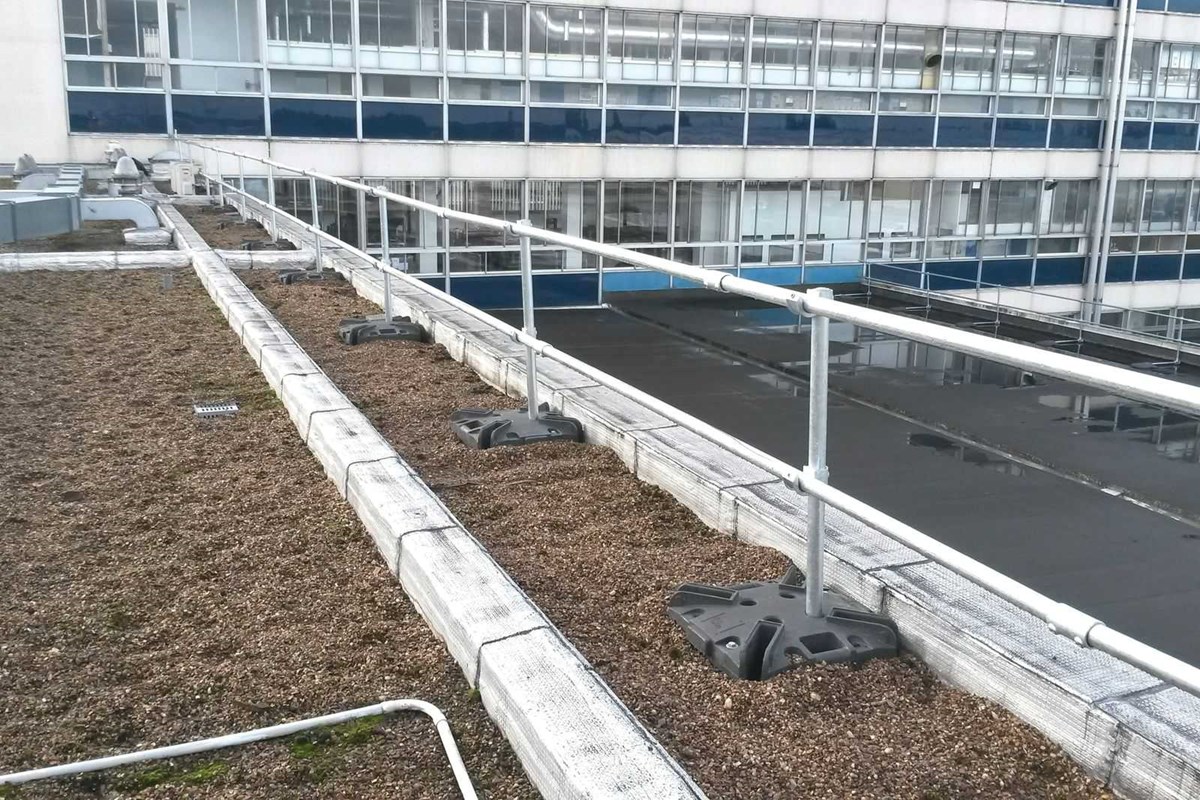

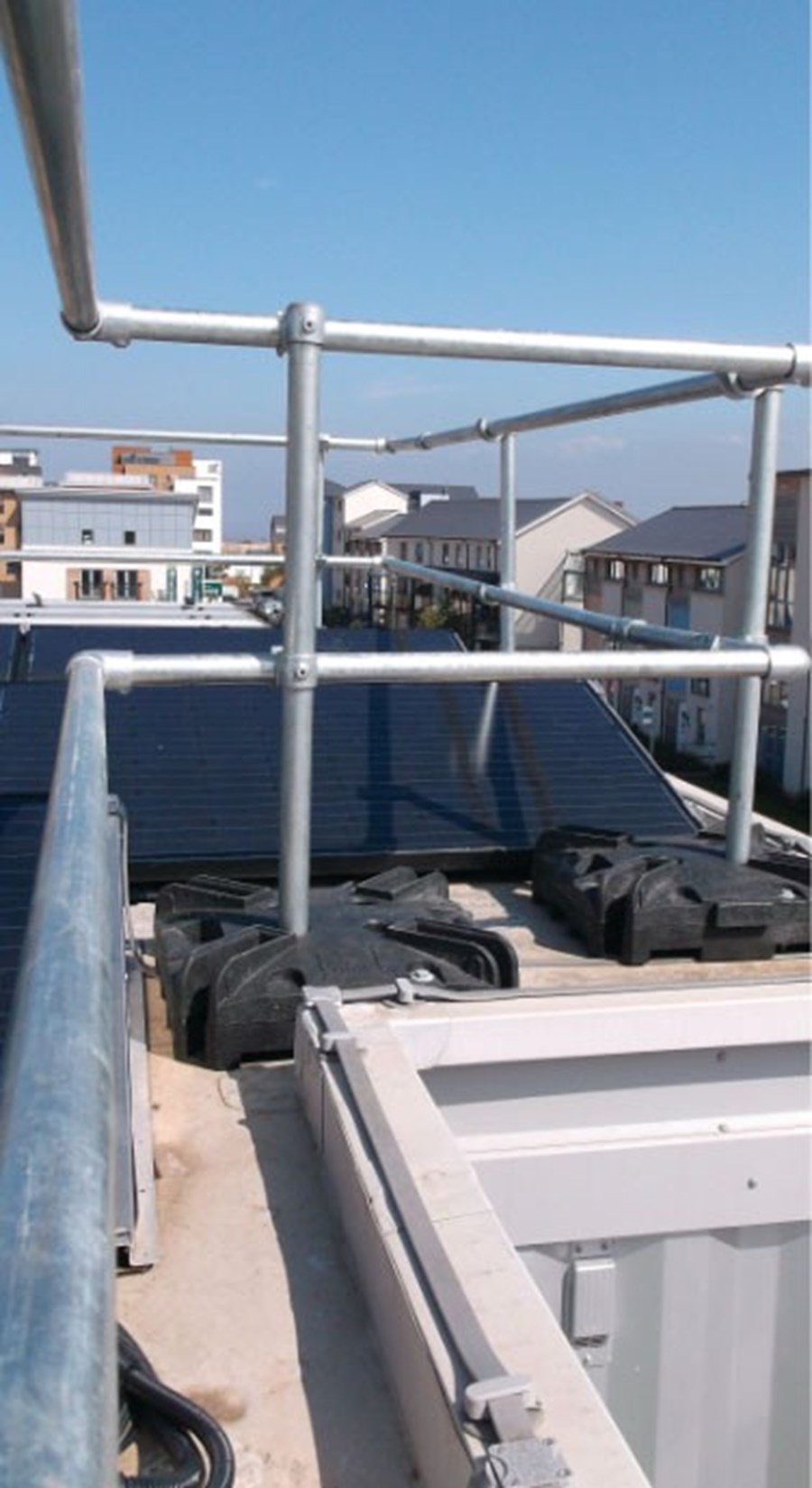

KeeGuard Contractor in the Workplace
See just how flexible our system is.
Highest standards for off-the-ground safety
OSHA 29 CFR 1910.23 (e)(1); (e)(3)(iv)
OSHA 29 CFR 1926.502 (b)(1)-(b)(14)
EN ISO 14122 Part 3
EN 13374 Class A
BS 13700 : 2021
HSG-33 Health & Safety in Roof Work
HSE INDG 284 “Working on roofs”
BS 6399: Part 2 1995 Wind Code
AS 1657 : 2018
Wind loading in accordance with AS/NZS 1170.2
I have worked with Todd and Kee Safety on multiple projects. Knowledgeable, professional, and always eager to help. A great combination!
~ Kyle P.
Kee Safety runs one of the world’s leading test and training centers at its global headquarters. Run by a team of industry experts, this state-of-the-art facility ensures that Kee Safety products meet the needs of its customers. Kee Safety is committed to driving new innovation with the purpose of separating people from hazards.
Building owners and employers are responsible for protecting their workers from any hazard encountered while on the job. In jobs requiring access to roofs for maintenance purposes, fall protection is usually required if workers will be exposed to a fall hazard.
Will installation of KeeGuard reduce insurance premiums?
Insurance premiums are often impacted by steps taken by the building owner to reduce hazards to their workers. More importantly, building owners’ liability will be strictly examined if an industrial accident occurs and preventative measures (such as KeeGuard) were not taken.
KeeGuard components can be painted by the customer before or after installation. KeeGuard components are also available powder coated in any RAL color at the customer’s request (extra charges apply for powder coating). Powder coating takes place prior to shipment.
Yes. KeeGuard Roof Edge Fall Protection Railing System is a passive, collective fall protection system that is preferred by safety consultants. Lives have been lost in work-related falls resulting from workers not using harnesses properly. The KeeGuard system removes the potential of that risk. Harness systems require training and proper and regular use. The embedded anchor for a harness system could later leak and cause costly water damage. The worry of not having enough harnesses for rooftop workers is eliminated.
With the use of the new KeeGuard open style fitting (standard), two workers with minimal experience and simple hand tools can be installed up to twice as fast as most other systems. All materials should be delivered to the rooftop using a hoist, crane or other mechanical methods. No power tools are required.
Galvanized pipe is used for vertical, horizontal and counterbalance supports and Kee Klamp fittings are all galvanized at our factory. The grub screws used to assemble the fittings and pipes together are all protected by Kee Koat® which is a special corrosion-resistant coating. KeeGuard fall protection system is engineered using special fittings and is designed to withstand a full range of outdoor conditions.
The system employs a tested and proven counterbalance system, the KeeGuard system (Patents in effect) is a roof edge railing fall protection system that keeps the workers on the roof without endangering the roof membrane itself.
Each KeeGuard counterbalance weighs only 30 pounds and has an insulating rubber pad on the underside which is installed at the factory. Each counterbalance is spaced sufficiently to make the entire system deliver less weight per square foot than the average worker who might have to walk on the roof.
We offer full design and installation services that include a complete on-site survey. We also produce comprehensive CAD drawings to help you visualize the end result. With our detailed project outline, you can be confident that your project is professionally specified, and that all safety concerns and standards are addressed to your satisfaction.
Alternatively, you can spec and install KeeGuard yourself with our easy-to-follow instructions – it all starts with a call to our knowledgeable staff!
